David Barfuss made me a 'Pearly Gates' like Humbucker for the neck position and a matching single coil for the middle. The switching allows me to wire the following:
Pos. 1: Full size HB neck
Pos. 2: Full size HB neck / middle SC
Pos. 3: Middle SC
Pos. 4: Middle SC / split HB bridge
Pos. 5: Full size HB bridge
Groundbreaking? idea in the use of the big 5-way switch is to get full single coil sounds out of a wiring, which is normally made for humbuckers.
I can realize complete wirings with 1 vol / 1 tone (2 no problem) and provide me customers with pre-wired switches to their own needs. Here you'll have to inquire because of so many options possible depending on personal sound and preferences ... so your choice!
You are right handed player, ok. I only need your wishes and will do it in the correct direction..
PP: shipping full sets into EC via personal letter is EURO 7,50
JKnoop 2016-12-10
parts > hsh wiring and switches
HSH Wiring / Schalter
Schaltet 2x 'full size' Humbucker mit 1x Single Coil zusammen, so dass alle 5 Positionen der Gitarre ohne Kompromisse klingen. Die Zwischenpositionen sind final nach Hörproben entstanden; mit dem von mir eingebauten Neck HB war leider kein TOP Single coil 'ersplitbar' also ist die Schaltung relativ konventionell geblieben.
Die Single Coil Stellungen 3+4 erhalten in der Schaltung eine Kompensation, die ihnen ein 'normales' 250K Volumepoti vorgaukelt. Es lassen sich je nach eigener Preferenz noch andere als die hier angedachte Variation erzielen.
Jedes dieser Werke läuft auf eine Einzelanfertigung hinaus ... daher Anfragen gerne (und bitte) telefonisch.
Besonderen Dank jetzt schon an David Barfuss, der mir das PU-Set gefertigt hat. Nach der intensiven Lötstationmalträtierung kann ich im Moment kein Bild von dem vorläufigen Endergebnis liefern ich nehme das nochmal auseinander und mach's sauber. Danke auch für's Lesen und Interesse. JK tbc
HSH Wiring / Switches
für 2x Full Size Humbucker und 1x Single Coil Pickups
Sounds
Crazy | 4x Clean
In dem 'cleanen' Soundfile sind die 4 Sounds vom Neck-PU bis zur Zwischenstellung Middle/Bridge enthalten; die beiden letzteren Positionen sind in der Schaltung über der Zusatzwiderstand 'kompensiert'
© J. Knoop, 2015 | Jackson PS4
Setup:
Marshall 18W 'handbuilt', Boss '63 Fender Reverb und Gov'ner
'96 Jackson PS4 mit von D. Barfuss für mich anfertigtem PU-Set; Saiten: 010-046

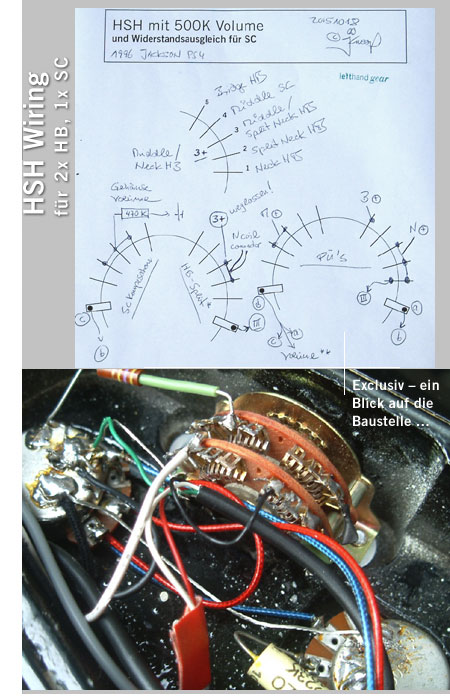

HSH Wiring
Für Superstrat / 1 Tone
Switch mit 2x 500K Potis, Anpassung für die SC-Sounds, Anleitung
Preis EURO 135,-
Dito 2 Tone Klangregelung, wie zuvor mit zusätzlich 1x 250K Ton-Poti
Preis EURO 155,-
Dito Rechtshand verdrahtet
Wie oben oder unten, jedoch mit 500K / 250K log 'regular taper' Potis
Weitere Optionen: Auf Anfrage.
! Wenn in dieser Schaltung kein Coil-Split gewünscht ist, ist der Einsatz eines 4-Ebenen Megaswitches oft unnötig. Es reicht ein HSS Wiring >> aus.
